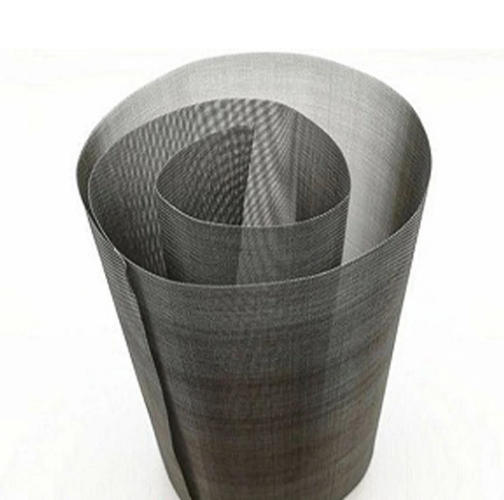

Titanium woven wire mesh, made from corrosion-proof Grade 1 or Grade 2 titanium wire, is typically classified by weave pattern: plain weave (1 × 1 over-under), twill weave (two-over two for higher strength and finer apertures), and Dutch weaves (plain-Dutch or twill-Dutch, using coarse warp and fine weft wires for micrometre-level filtration). Common specifications range from 20 × 20 mesh with 0.40 mm wire for structural screens, to 80 × 80 mesh with 0.18 mm wire for gas-diffusion layers, and ultra-fine 200–400 mesh with 0.05–0.10 mm wire for chemical, medical, or aerospace filtration. Standard roll widths are 1.0–1.5 m, lengths 15–30 m, and custom-cut sheet or disc blanks are available up to 2 m × 2 m.

General Specifications

• Material Grades: Titanium mesh uses Grade 1 (weaker) or Grade 2 (stronger) titanium (≥ 99% Ti). Both are non-magnetic and biocompatible; Grade 2 is preferred for added strength without losing corrosion resistance.
• Mesh Counts: Standard mesh counts range from coarse (10×10, 12×12) to ultra-fine (200×200 to 400×400). Special Dutch weaves (30-80 warp x up to 800 weft) are for very fine filtration.
• Wire-Diameter Range: Wire diameters vary by mesh: coarse (0.50-0.30 mm), process (0.28-0.18 mm), fine (0.15-0.05 mm). Dutch weaves often use 0.40 mm warp and 0.10 mm weft for flow and retention.
• Aperture (Opening) Size: Opening sizes range from 2.0-1.0 mm (coarse plain weave) to 10-5 µm (Dutch weave). Medium filtration is 900-150 µm, fine is 100-20 µm.
• Weave Patterns: Common weaves are plain (general strength), twill (tighter, more ductile), plain-Dutch (high flow, fine retention), and twill-Dutch (sub-10 µm, high pressure/precision).
• Roll Widths: Standard roll widths are 1.0 m, 1.22 m, and 1.5 m. Wider rolls (up to 2.0 m) can be custom-woven for large areas.
• Roll Lengths: Roll lengths depend on wire gauge: light (30 m), medium (15 m), heavy (5-10 m). Shorter rolls help with flatness during installation.
• Sheet / Panel Dimensions: Flat panels up to 2000 x 2000 mm are available, laser/water-jet cut to ± 0.1 mm. Thicker panels can be flattened for gasket making.
• Disc Diameters: Standard disc sizes are 10-100 mm; custom sizes (5-600 mm) are CNC-cut. Stacked discs are used in filters and extrusion.
• Thickness (Caliper) Tolerance: Plain weave thickness equals wire diameter (± 2%). Compacted/sintered laminates have ± 0.05 mm tolerance for precise fitting.
• Open-Area Percentage: Open area ranges from high (78% for 10×10) to low (18-32% for Dutch weaves). Mesh count and wire diameter affect this.
• Specific Weight (surface density): Weight varies by mesh and wire: e.g., 10×10 (0.50 mm wire) ≈ 3.5 kg/m², 100×100 (0.10 mm wire) ≈ 0.45 kg/m².
• Maximum Service Temperature: Titanium mesh can handle 315 °C in air (short peaks to 400 °C) and over 500 °C in inert/vacuum conditions.
• Corrosion Resistance (pH range): Titanium is passive in pH 1-13, resists seawater, chlorides, nitric and organic acids, making it good for electrochemical and medical uses.
• Standards & Certifications: Titanium wire and mesh meet ASTM B348, ASTM F880/ISO 9044, and can be supplied with ISO 9001, DFARS, ROHS, and REACH compliance.

Titanium Woven Mesh for Various Applications
Titanium Woven Mesh for Various Applications delivers lightweight strength, precise aperture control, and outstanding corrosion resistance. The broad plain-weave sheet shown illustrates uniform texture, suitable for aerospace vents, fine chemical sieving, medical implant baskets, and seawater filtration panels.

Security Solutions with Titanium Woven Mesh
Security Solutions with Titanium Woven Mesh showcases a robust square-opening fabric, its thicker wires giving high impact resistance and visibility control. Ideal for architectural security screens, window guards, and ventilation louvers in corrosive coastal zones while remaining lightweight.

Titanium Woven Mesh Durable Solutions
Titanium Woven Mesh Durable Solutions highlights a fine plain-weave cloth, demonstrated beside a coin for scale. Consistent 100–200 mesh apertures offer particle retention, excellent fatigue strength, and biocompatibility, serving pharmaceutical filters, electronic battery electrodes, precision sieves, and labware.

Titanium Woven Mesh Versatile Material Options
Titanium Woven Mesh Versatile Material Options presents calibrated gauging atop a medium-fine weave, reflecting customizable apertures from 20 to 200 mesh. Engineers choose openings for aerospace defoggers, industrial catalyst supports, seawater desalination baskets, medical stents, and EMI shielding.
