Heavy Duty Crimp Wire Screens Mesh For Vibrating Screen

Grote Afbeelding : Heavy Duty Crimp Wire Screens Mesh For Vibrating Screen

Productdetails:

Plaats van herkomst:	Hebei, China
Merknaam:	XMESH
Certificering:	SGS
Modelnummer:	Qj-355

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	200 stuks
Verpakking Details:	Met staalpallets
Levertijd:	15-25 dagen
Betalingscondities:	TT/LC
Levering vermogen:	3000 pc's per maand

Contact

Gedetailleerde productomschrijving

Materiaal:	Mangaanstaal	Draaddiameter:	6,0 mm
Gatvorm:	Rechthoek	Type weven:	Gewoon weefsel
Techniek:	Geweven gaas	Treksterkte:	800 - MPa 1000
E-mail:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Markeren:	heavy duty crimp wire mesh , vibrating screen mesh , mining screen mesh with warranty

Heavy Duty Crimp Wire Screens Mesh For Vibrating Screen

Our premium square metal woven wire mesh is engineered for extreme quarry environments. Crafted from high-grade stainless steel, it delivers unmatched durability against abrasion, impact, and corrosion. This robust mesh is specifically designed for quarry crusher discharge and vibrating screen applications, handling aggressive materials like granite, basalt, and gravel. The precision-woven mesh ensures accurate particle sizing and high throughput efficiency. Its rigid square openings resist blinding and pegging, while the stainless steel construction minimizes downtime and replacement costs. Ideal for primary screening after crushers or final aggregate classification, this vibrating screen mesh offers superior longevity and stable performance in harsh processing conditions. Upgrade your screening efficiency with industrial-grade reliability.

Product Features
- Diverse Materials: Mainly uses materials such as 65Mn high-carbon steel and stainless steel. For example, products made of 65Mn high-carbon steel have a tensile strength of 1600 - 1800 Mpa, ensuring the strength and wear resistance of the products. Products made of stainless steel have strong corrosion resistance and can adapt to harsh environments.
- Rich Specifications: The mesh size ranges from 1mm - 152.4mm, and the wire diameter ranges from 0.50mm - 19.00mm, which can meet the screening needs of different customers for materials with different granularities.
- Excellent Performance: It has the characteristics of high wear resistance, anti-blocking and self-cleaning. For example, polyurethane mesh has the characteristics of high elasticity, high temperature resistance and light weight, with a thickness of 20 - 60mm and an opening of 0.6 - 160mm, and has a good use effect.
Company Advantages
- Strict Quality Control: It has a strict quality control system and a professional testing laboratory to ensure the reliability of product quality. Some products also meet the ISO9001 standard.
- Strong R & D Capability: It has an in-house professional design team and an advanced machine shop, and can cooperate with customers to develop required products. It has 18 patented products, all of which meet EU standards.
- Comprehensive Service: It provides bulk and customized small packaging, and supports various delivery methods such as FOB, CIF, DDU and DDP, and can provide customers with comprehensive solutions.

No	Grade	Chemical Composition
No	Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

No	Grade	Chemical Composition
No	Grade	C	Ni	Mn	Cr
1	304	≤0.08	8.0-11.0	≤2	18.0-20.0
2	321	≤0.08	9.0-12.0	≤2	17.0-19.0
3	316	≤0.08	10.0-14.0	≤2	16.0-18.5
4	2205	≤0.03	4.5-6.5	2.5-3.5	21.0-24.0
5	2507	≤0.03	6-8	≤1.2	24-26

Woven wire screen cloths Edge Types:

Woven wire screen cloths Aperture and Wire Diameter:

Opening (Aperture)		Wire Diameter		Open Area %	Approx. Weight kg/m2
mm	inch	mm	inch	Open Area %	Approx. Weight kg/m2
25.4	1	5.72	0.225	66.62%	13.3
28.58	1 1/8	5.72	0.225	69.43%	12.2
31.75	1 1/4	5.72	0.225	71.80%	10.9
19.05	3/4	6.17	0.243	57.06%	19.1
20	48/61	6.17	0.243	58.41%	18.6
22.23	7/8	6.17	0.243	61.27%	17.3
25.4	1	6.17	0.243	64.73%	15.4
26.99	1 1/16	6.17	0.243	66.25%	14.6
28.58	1 1/8	6.17	0.243	67.64%	13.8
31.75	1 1/4	6.17	0.243	70.11%	12.6
25.4	1	7.19	0.283	60.74%	19.8
28.58	1 1/8	7.19	0.283	63.84%	18.2
31.75	1 1/4	7.19	0.283	66.48%	16.7
38.1	1 1/2	7.19	0.283	70.77%	14.5
25.4	1	7.92	0.312	58.11%	24
28.58	1 1/8	7.92	0.312	61.31%	22
31.75	1 1/4	7.92	0.312	64.06%	20.25
38.1	1 1/2	7.92	0.312	68.54%	17.5
41.28	1 5/8	7.92	0.312	70.40%	16
44.45	1 3/4	7.92	0.312	72.04%	15
50.8	2	7.92	0.312	74.84%	13.5
25.4	1	9.19	0.362	53.92%	30.9
31.75	1 1/4	9.19	0.362	60.14%	26
38.1	1 1/2	9.19	0.362	64.91%	21.4
41.28	1 5/8	9.19	0.362	66.90%	22.4
44.45	1 3/4	9.19	0.362	68.67%	20
50.8	2	9.19	0.362	71.71%	18.1
57.15	2 1/4	9.19	0.362	74.21%	16.2
63.5	2 1/2	9.19	0.362	76.31%	14.85
50.8	2	11.1	0.437	67.35%	25.3
50.8	2	12.7	0.5	64.00%	32.3
57.15	2 1/4	12.7	0.5	66.94%	29.53
63.5	2 1/2	12.7	0.5	69.44%	26.5
76.2	3	12.7	0.5	73.47%	22.7
88.9	3 1/2	12.7	0.5	76.56%	20.2
101.6	4	12.7	0.5	79.01%	17.9

Crimp Wire Screen Mesh Application:

Ore classification: In mines, it is extensively used for primary, secondary, and fine screening of ores. It separates ores into different particle size fractions, facilitating subsequent beneficiation processes such as flotation, magnetic separation, and gravity separation.
Gravel and aggregate production: In quarries, the mesh is vital for screening gravel and aggregates. It ensures that the produced materials meet the specific size requirements for use in construction projects, such as in concrete production, road building, and landscaping.
Coal processing: In coal mines, woven wire crimp screens are used to separate coal into different grades based on particle size. This is essential for meeting the diverse needs of different industries, such as power generation, metallurgy, and chemical production.

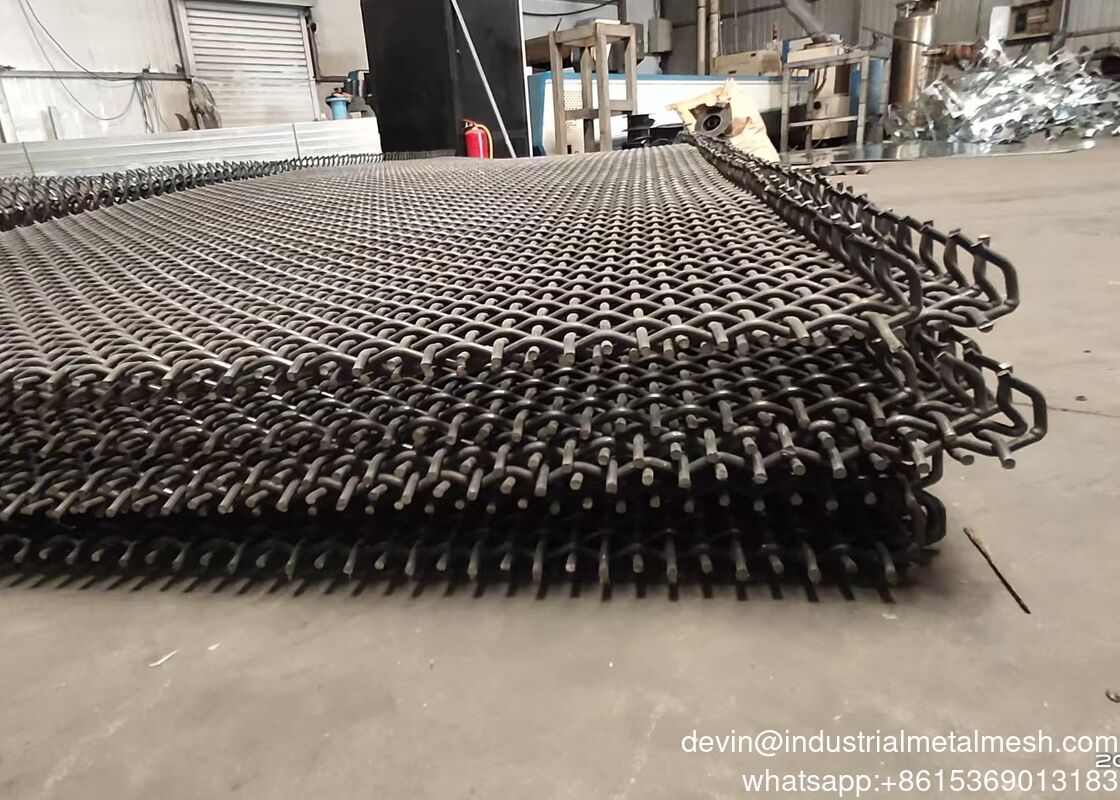

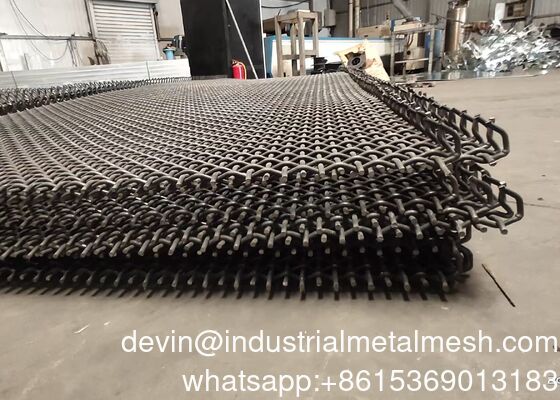

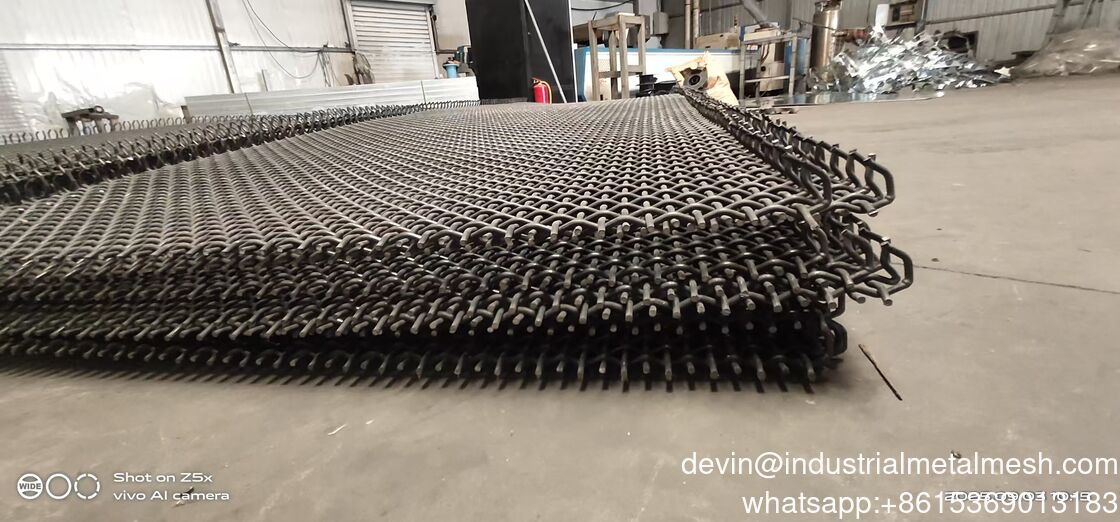

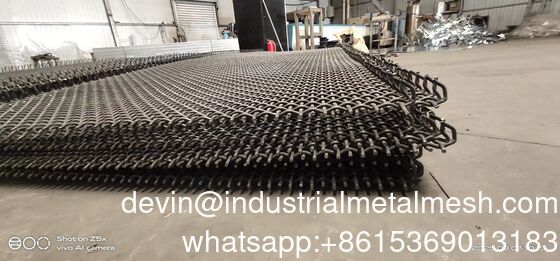

Heavy Duty Crimp Wire Screens Mesh For Vibrating Screen 1
