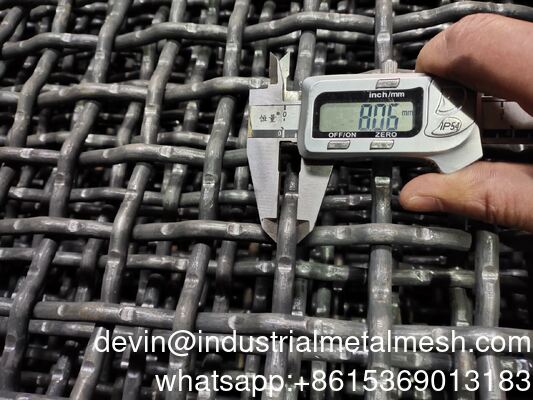

65mn Crimped Wire Mesh Woven Screen Crusher Vibrating Screen Mesh Customized Hook Vibrating Sieve

Grote Afbeelding : 65mn Crimped Wire Mesh Woven Screen Crusher Vibrating Screen Mesh Customized Hook Vibrating Sieve

Productdetails:

Plaats van herkomst:	Hebei, China
Merknaam:	Xmesh
Certificering:	SGS
Modelnummer:	MVSM

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	10 stuks
Verpakking Details:	Pallets
Levertijd:	15-25 dagen
Betalingscondities:	TT/LC
Levering vermogen:	1000 stuks per maand

Contact

Gedetailleerde productomschrijving

Materiaal:	roestvrij staaldraad	Type:	Geplooid draadnetwerk
Sollicitatie:	geweven draadgaas	Weefstijl:	Gewoon weefsel
Techniek:	Geweven	Modelnummer:	Het trillen het Schermnetwerk
Verwerkingsdienst:	Buigen, LASSEN, Decoilen, Snijden, PONSEN	Levertijd:	31-45 dagen
Oppervlaktebehandeling:	gegalvaniseerd of geschilderd.	Maaswijdte:	1mm - 100mm.
Gattype:	vierkante, rechthoekige en lange sleuf.	openingsmaat:	2.0 - 80,0 mm
Draaddiameter:	0,8 - 8mm	breedte:	1,2 m
Lengte:	30m	HAAK:	haak met staalplaat
haak graad:	60Degree	Type weven:	Dubbele Golfplaat
E-mail:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Markeren:	65mn crimped wire mesh screen , customized hook vibrating sieve , woven crusher vibrating screen mesh

65mn Crimped Wire Mesh Woven Screen Crusher Vibrating Screen Mesh Customized Hook Vibrating Sieve

Product Description

65Mn Crimped Wire Mesh Woven Screen for Crusher and Vibrating Sieve with Customized Hooks

The 65Mn Crimped Wire Mesh Woven Screen is engineered for high-performance crusher and vibrating sieve applications in mining, quarrying, and aggregate processing. Made from premium 65Mn spring steel, this woven screen mesh delivers exceptional tensile strength, abrasion resistance, and long service life, ensuring reliable performance under continuous vibration and heavy-duty material handling.

Designed with a crimped wire structure, the mesh maintains stable spacing and prevents sagging or deformation, providing precise particle separation and consistent screening efficiency. The woven design ensures superior durability against impact from sharp, abrasive materials commonly found in mining and aggregate operations.

Equipped with customized hooks, the vibrating sieve mesh allows for secure and easy installation on a variety of screen decks, reducing installation errors and operational downtime. The robust construction and high elasticity of 65Mn steel provide excellent anti-blinding and anti-pegging performance, especially when handling wet, sticky, or fine materials, ensuring smooth material flow and maximum throughput.

Available in various aperture sizes, wire diameters, mesh dimensions, and hook configurations, the crimped wire mesh can be tailored to meet different vibrating sieve and crusher models, as well as specific operational requirements. The durable design minimizes maintenance, extends service life, and improves overall productivity.

Widely applied in ore screening, coal processing, stone crushing, sand and gravel separation, and aggregate classification, the 65Mn Crimped Wire Mesh Woven Screen with Customized Hooks provides a high-performance, cost-effective, and reliable solution for modern mining and quarry operations seeking durability, precise screening, and reduced downtime.

1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.

Products	65MN crimped wire mesh screen (45#,50#,55#,60#,70#, and 72A material grade also can be made)
Feature	65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying, and aggregating industries. Compared with carbon steel,45#,50#,55#,60#,70#, and 72A material grade, 65mn Material has the highest Manganese content and high carbon, which lets it have High Wear resistance and Tensile strength. Stainless steel is also a fine material, but the price is too expensive for batch quantity uses. So 65mn crimped wire mesh is a great screen for the mining, quarrying, and vibrating industry.
Material grade	65Mn Steel
Aperture/opening	1.0mm-150mm
Wire diameter	0.5-12.7mm
standard sheet size	1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm.
Weaving type	Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommended for Mining Screen Usage
Width	width up to 6 meters
Length	length up to 100 meters.
surface finish	Mill finish, Anti-rust oil spraying, PVC coating
Application	Heavy Screening & Sieving Of Coal Mines. Stone Quarry Works Wire Mesh For Pig Breeding Coal Mine Cement Plant The Cement Factory Petroleum Glass Factory Hardware Products
Standards	Material GBT 1222-2016 Quality GBT 13307-2012 GBT 13307-2012 ISO 4783-3

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS

Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn
45	0.42-0.50	0.52-0.60	0.50-0.80
50	0.47-0.55
55	0.52-0.60
60	0.57-0.65
65	0.62-0.70
70	0.67-0.75
65Mn	0.62-0.70		0.90-1.20
72A	0.15-0.75	0.15-0.75	0.30-0.60

Technical Parameters of Stainless Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn	Cr
304	≤0.08	8.0-10.5	≤2.0	18.0-20.0
321	≤0.08	9.0-12.0	≤2.0	17.0-19.0
316	≤0.08	10.0-14.0	≤2.0	16.0-18.0
2205	≤0.03	4.5-6.5	≤2.0	21.0-23.0
2207	≤0.03	6-8	≤1.2	24.0-26.0

Aperture Square Weave	Light duty Wire Dia kg/m²OA%			Medium Wire Dia kg/m OA%			Heavy Duty Wire Dia kg/m²OA%
2.00							1.37	7.1	35
3.15				2.00	9.9	37	2.50	14.1	31
4.0	2.00	8.50	44	2.50	12.2	38	3.05	16.8	32
5.0	2.00	7.80	51	2.50	16.6	44	3.05	14.7	38
5.6	2.50	9.80	48	3.05	13.7	41	4.00	21.2	34
6.35	2.50	8.89	51	3.05	12.6	46	4.00	19.6	38
6.8	2.50	9.00	51	3.05	10.0	44	4.00	19.7	37
7.1	2.50	8.80	55	3.05	11.9	48	4.00	18.3	41
8	2.50	10.80	54	4.00	16.9	44	5.00	24.4	38
9	3.05	9.80	55	4.00	15.6	48	5.00	22.7	44
10	3.05	9.10	58	4.00	14.5	51	5.00	21.2	44
11.2	3.05	10.40	54	5.00	19.6	48	5.60	28.6	44
12.5	4.00	12.30	57	5.00	18.1	51	5.60	20.0	47
14	4.00	16.70	54	5.00	20.0	51	6.80	24.6	48
16	5.00	15.10	58	5.60	19.5	56	6.80	22.6	51
18	5.00	14.50	58	6.80	20.7	55	7.10	25.0	51
20	5.60	14.00	61	6.80	19.2	58	7.10	24.0	54
22	5.60	17.60	61	7.10	21.5	57	8.00	26.7	54
25	6.80	16.10	64	7.10	20..1	60	8.00	24.6	57
28	7.00	14.70	63	8.00	19.0	61	9.00	27.8	57
32	8.00	20.60	64	9.00	26.0	60	10.00	30.4	58
38	8.00	18.70	67	9.00	28.1	64	10.00	27.9	61
40	9.00	21.00	67	10.00	25.4	64	11.20	31.1	61
45	9.00	19.50	69	10.00	23.4	67	11.20	28.4	64
50	10.00	23.20	69	11.20	26.0	67	12.50	31.8	64
56	10.00	19.20	72	11.20	28.7	69	12.50	29.0	67
63	10.00	17.40	75	11.20	24.5	72	12.50	25.1	70
76.2	10.00	14.80	78	11.20	16.0	75	12.50	20.0	73
80	10.00	16.00	79	11.20	17.5	72	12.50	21.5	75
90	10.00	14.00	81	11.20	15.7	79	12.70	19.4	77
100	10.00	10.00	82	11.20	14.3	81	12.70	17.6	79

65mn Crimped Wire Mesh Woven Screen Crusher Vibrating Screen Mesh Customized Hook Vibrating Sieve 1

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below. 65mn Crimped Wire Mesh Woven Screen Crusher Vibrating Screen Mesh Customized Hook Vibrating Sieve 2

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

65mn Crimped Wire Mesh Woven Screen Crusher Vibrating Screen Mesh Customized Hook Vibrating Sieve 3

Aperture
Square WeaveLight duty
Wire Dia kg/m²OA%Medium
Wire Dia kg/m OA%Heavy Duty
Wire Dia kg/m²OA
