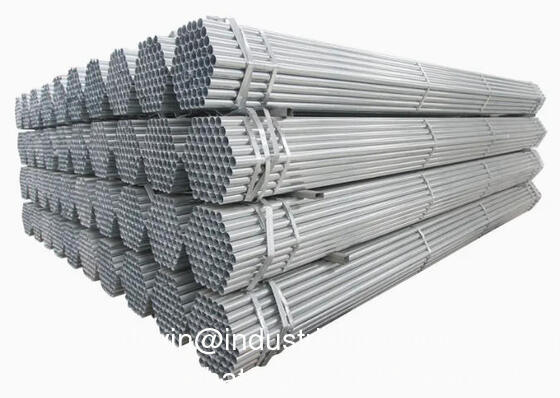

BS 1387 ASTM A53 Galvanized Steel Pipe for Scaffolding
Pre - galvanized pipe: pre-galvanized pipe is made of hot dipped galvanized steel strip directly ,
Usage: Used for low pressure liquid delivery, such as water, gas, and oil,fence,conduit,green house etc.
Standard: GB/T3091 - 2001 ,BS1387 - 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53
Steel Grade: GB/T3091 - 2001:Q195 , Q235
BS1387 - 1985 , DIN EN10025 EN10219 :S235JR
JIS G3444:2004:STK400
ASTM A53: GR. A , GR. B
Pre galvanized steel pipe:
| Outer Diameter |
Wall Thickness |
Length |
| Inch |
mm |
mm |
meter |
| 1/2" |
20mm |
0.8mm-2.0mm |
0.3m-12m |
| 3/4" |
25mm |
0.8mm-2.0mm |
0.3m-12m |
| 1" |
32mm |
0.8mm-2.0mm |
0.3m-12m |
| 1-1/4" |
40mm |
0.8mm-2.0mm |
0.3m-12m |
| 1-1/2" |
47mm |
1.0mm-2.5mm |
0.3m-12m |
| 2" |
60mm |
1.0mm-2.5mm |
0.3m-12m |
| 2-1/2" |
75mm |
1.0mm-2.5mm |
0.3m-12m |
| 3" |
88mm |
1.0mm-2.5mm |
0.3m-12m |
| 4" |
113mm |
1.0mm-2.5mm |
0.3m-12m |
| 5" |
140mm |
1.0mm-2.5mm |
0.3m-12m |
| 6" |
165mm |
1.0mm-2.5mm |
0.3m-12m |
Hot dipped galvanized pipe : hot dipped galvanized pipe owns thicker zinc coating than pre-galvanized pipe ,black pipes will be dipped into zinc pool for galvanized.
Standard: GB/T3091 - 2001 ,BS1387 - 1985 , DIN EN10025 ,EN10219 , JIS G3444:2004 , ASTM A53
Steel Grade: GB/T3091 - 2001: Q195,Q235 , Q345
BS1387 - 1985 , DIN EN10025 ,EN10219 :S235JR ,S275JR,S355JR, S355J2H
JIS G3444:2004:STK400 ,STK500
ASTM A53: GR. A , GR. B, GR. C , GR. D
Hot dip galvanized steel pipe:
| Outer Diameter |
Wall Thickness |
Length |
| Inch |
mm |
mm |
meter |
| 1/2" |
21.3mm |
0.6mm-3.0mm |
0.3m-12m |
| 3/4" |
26.9mm |
0.6mm-3.0mm |
0.3m-12m |
| 1" |
33.4mm |
1.0mm-3.0mm |
0.3m-12m |
| 1-1/4" |
42.3mm |
1.0mm-4.0mm |
0.3m-12m |
| 1-1/2" |
48.3mm |
1.0mm-4.0mm |
0.3m-12m |
| 2" |
60.3mm |
1.5mm-4.0mm |
0.3m-12m |
| 2-1/2" |
76.1mm |
1.5mm-4.0mm |
0.3m-12m |
| 3" |
88.9mm |
1.5mm-9.5mm |
0.3m-12m |
| 4" |
114.3mm |
2.0mm-9.5mm |
0.3m-12m |
| 5" |
141.3mm |
3.0mm-9.5mm |
0.3m-12m |
| 6" |
168.3mm |
3.0mm-12.0mm |
1.0m-12m |
| 8" |
219.1mm |
3.2mm-12.0mm |
1.0m-12m |
| 10" |
273mm |
3.2mm-12.0mm |
1.0m-12m |
| 12" |
323.8mm |
6.0mm-15.0mm |
1.0m-12m |
| 14" |
355.6mm |
8.0mm-15.0mm |
1.0m-12m |
| 16" |
406.4mm |
8.0mm-20.0mm |
1.0m-12m |
1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H
Square & rectangular steel tube : The size can be based on your requirement to custom.
| Name |
Size |
Wall Thickness |
Length |
| mm |
mm |
m |
| Square tube |
10x10-500x500 |
0.6-25.0 |
1-12m |
| Rectangular tube |
20x10-200x400 |
0.7-13.0 |
1-12m |
