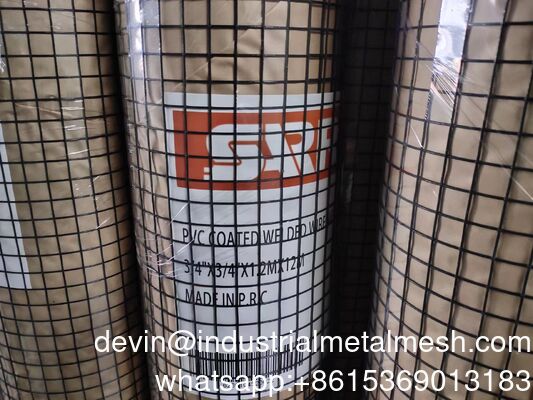

Welded wire mesh,or welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control. The product results in considerable savings in time, labour and money.
specification:
wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
| Galvanized Fencing Mesh: |
| Opening |
Wire Diameter<BWG> |
| In inch |
In metric unit(mm) |
| 2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
| 3" x 3" |
75mm x 75mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
| 4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
| Specification List of Welded Wire Mesh: |
| Opening |
Wire Diameter<BWG> |
| In inch |
In metric unit(mm) |
| 1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
| 3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
| 1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
| 3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
| 1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
| 1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
| 2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
|
