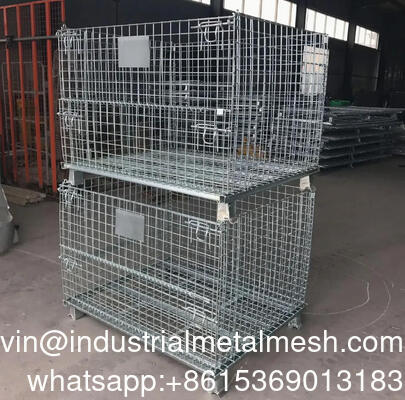

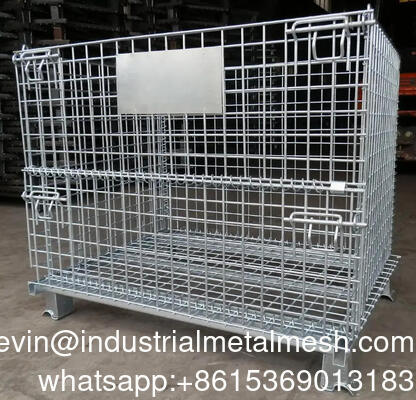

European Metal Folding Wire Mesh Storage Cage for Wine Bottle
The storage cage is welded with strong steel wire, and the bottom is welded in a U-shape to make the structure more sturdy. Install cardboard protective materials inside the storage cage to store materials that are prone to scratching the surface. With the help of handling equipment, it can be used in logistics processes such as transportation, loading and unloading, and storage.
It can also be equipped with casters for greater mobility and easy folding, and can be customized according to customer requirements
|
Model
|
Load-Bearing(kg)
|
Size
|
Wire Diameter(mm)
|
Mesh Size(mm)
|
|
CCL-01
|
450
|
800*500*540
|
4.5
|
25*25
|
|
CCL-02
|
500
|
800*500*540
|
4.8
|
25*50
|
|
CCL-03
|
400
|
800*600*640
|
4.8
|
50*50
|
|
CCL-04
|
600
|
800*600*640
|
5.2
|
50*50
|
|
CCL-05
|
700
|
800*600*640
|
5.6
|
50*50
|
|
CCL-06
|
800
|
800*600*640
|
5.8
|
50*50
|
|
CCL-07
|
400
|
1000*800*840
|
4.8
|
50*100
|
|
CCL-08
|
600
|
1000*800*840
|
4.8
|
50*50
|
|
CCL-09
|
700
|
1000*800*840
|
5.8
|
50*100
|
|
CCL-10
|
1000
|
1000*800*840
|
5.6
|
50*50
|
|
CCL-11
|
1200
|
1000*800*840
|
5.8
|
50*50
|
|
CCL-12
|
400
|
1200*1000*890
|
4.8
|
50*100
|
|
CCL-13
|
600
|
1200*1000*890
|
4.8
|
50*50
|
|
CCL-14
|
800
|
1200*1000*890
|
5.8
|
50*100
|
|
CCL-15
|
1000
|
1200*1000*890
|
5.8
|
50*50
|
|
CCL-16
|
1500
|
1200*1000*890
|
5.6(Enhanced version)
|
50*50
|
|
5 inch light duty wheels, load capacity 200kg, 5 inch heavy duty wheels, load capacity 500kg.
|
storage cage
Warehouse cage, also known as warehouse cage and butterfly cage, is an important kind of logistics container in warehousing and transportation. It has the advantages of fixed storage capacity, neat storage, clear storage, easy inventory counting and so on. At the same time, it also improves the effective utilization of warehouse space. The storage cage can be folded freely and stored when not in use.
Details
1. It is made of high-quality steel and cold-rolled and hardened, with high strength and large loading capacity.
2. Uniform specifications, fixed capacity, storage of goods at a glance, easy to inventory inventory.
3. The surface is galvanized, beautiful and anti-oxidation, and has a long service life.
4. It adopts international standards and can be used with containers to effectively improve space utilization.
5. Can be stacked on top of each other to achieve three-dimensional storage.
6. Environmentally friendly treatment, health immunization, turnover, storage and recycling do not pollute the environment.
7. Efficient operation can be carried out with equipment such as forklifts, cattle, elevators and cranes.
8. The folding structure has low recycling cost and is an alternative to wooden crates.
9. Wheels can be mounted at the bottom, making it easy to turn around inside the factory.
Specification
| Product name |
Foldable Wire Mesh cage |
| Color |
Regular is Silvery/Supports various color customization |
| Load Capacity |
200-1500KG |
| Specifications |
Length:800-1800mm
Width:600-1200mm
Height:640-1350mm |
| Specific specifications and dimensions |
Outer Dimension
L*W*H (mm) |
Inside Dimension
L*W*H (mm) |
Mesh Size
(mm) |
Wire Diameter
(mm) |
Net Weight
(KG) |
| 800*600*640 |
750*550*500 |
50*50 |
5.0 |
20.6 |
| 800*600*640 |
750*550*500 |
50*50 |
5.5 |
22.4 |
| 800*600*640 |
750*550*500 |
50*50 |
5.8 |
25.9 |
| 800*600*640 |
750*550*500 |
50*50 |
6.0 |
28 |
| 1000*800*840 |
950*750*700 |
50*100 |
5.0 |
27.6 |
| 1000*800*840 |
950*750*700 |
50*50 |
5.0 |
31.2 |
| 1000*800*840 |
950*750*700 |
50*50 |
5.5 |
34.6 |
| 1000*800*840 |
950*750*700 |
50*100 |
5.8 |
37.5 |
| 1000*800*840 |
950*750*700 |
50*50 |
5.8 |
41.1 |
| 1000*800*840 |
950*750*700 |
50*50 |
6.0 |
43 |
| 1200*1000*890 |
1150*950*750 |
50*100 |
5.0 |
35.9 |
| 1200*1000*890 |
1150*950*750 |
50*50 |
5.0 |
42.5 |
| 1200*1000*890 |
1150*950*750 |
50*100 |
5.5 |
39.3 |
| 1200*1000*890 |
1150*950*750 |
50*100 |
5.8 |
46.6 |
| 1200*1000*890 |
1150*950*750 |
50*50 |
5.8 |
53.6 |
| 1200*1000*890 |
1150*950*750 |
50*50 |
6.0 |
60 |
| 1500*1100*1100 |
1450*1050*960 |
50*100 |
5.8 |
63.5 |
| 1600*1200*1340 |
1550*1150*1200 |
50*100 |
5.8 |
77.5 |
| 1800*1200*1350 |
1750*1150*1110 |
50*100 |
5.8 |
90 |
All Wire Mesh Cage's Specifications, dimensions, and colors can be customizable.
If you have any further requirements, please click here to contact us for instant inquiry.
|
Features
I. Sliding locking handles hold drop side securely.
2. The "U" formed base channels welded by welding robots, ensuring welding quality and strong capacity.
3. Spiral hinge wire improves side panel steady and collapsible, foldable flat to save space.
4. Double welded wire construction to reinforce side panel for stack safety.
5. Arched steel legs design increase strength and aid stack high and steady.
6. "U" formed construction is welded underneath the side panel to avoid sliding.
7. Fasteners are used to joint side panels together, ensuring durability.
8. "U" formed loops work with handles to fix up the side panel and drop gates.
9. Holes punched on the U formed base channels for fixing the casters.
10. Steel name plate.
Advantages of foldable steel container:
1) Widely used in warehouse storage, and also in cargo transportation and transit.
2) Made of high-quality steel materials, stable and safe.
3) Heavy-duty, loading capacity 500-2500kg.
4) Can be stacked to over 4 layers, saved 20% of storae space
5) Suitable for forklifts operation.
6) Foldable / Collapsible, when not in use, to save storage space.
Packaging:
* Plastic banding & Stretch film wrapped
* easy loading and unloading with standard forklift truck
* as your requirement
Delivery:
7-15 days
