Stainless Steel 304 Woven Wire Mesh Insect Nets Security Screen for Windows Mosquito Net
Stainless steel security window screen is also called security insect screen, security mesh, safety net, bulletproof net, guard against theft window screening, It is made of high quality stainless steel wire.
stainless steel network features, transparent without vertigo, indoor to the outdoors, such as a layer of colored glass transparent, outdoor to the indoors is blurred, trance unclear. The stainless steel mesh has high hardness and good light transmission. Because of high strength, no matter fixed on the wall or window, have enough good receptivity, not afraid of outsiders invasion. High-quality mesh is through the electrophoretic paint treatment, not afraid of moisture, the sun insolation may be bad conditions of erosion. Because it is a crisscross structure and has a line diameter of 0.8 mm, it can not only prevent mosquitoes, but also enhance the anti-theft effect. The well-known Jinyang King Kong network anti-theft window and high-quality locks and fittings with the matching, raised the function of this anti-theft door and window superior, quality assurance features. With this anti-theft door and window, let your home on the one hand ventilated, breathable, no mosquitoes can also ensure that thieves cannot enter.
|

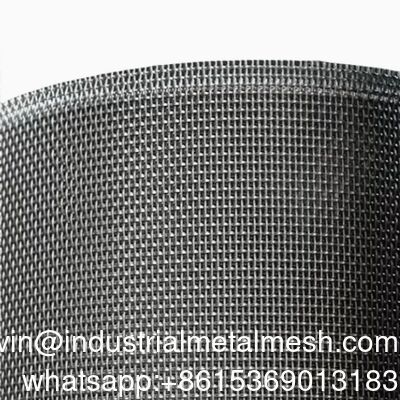

stainless steel window screen-001
|

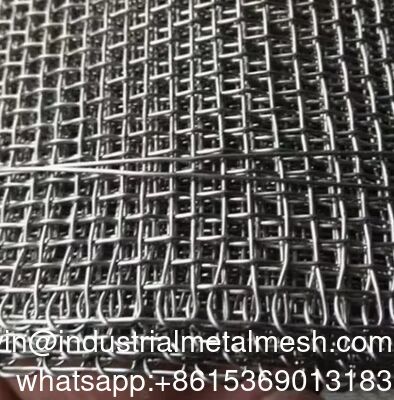

stainless steel window screen-002
|
Material Of stainless steel insect screen:
stainless steel 304 ,316,316L mesh, carbon steel mesh
Aperture: 11x11mesh, 12x12 mesh, 14x14mesh,etc. .
Wire diameter: 0.7mm,0.80mm, 0.90mm, etc.
Characteristics of stainless steel insect screen:
Stainless steel insect screen has nice properties, such as good stablity, rust-resistance, heat-resistance, acid-resistance and corrosion-resistance and so on.
With those unique features, stainless steel window screening could be applied under high temperature workshops and civil constructions.
Various of Colors:
The color of stainless steel window screening could be white, green, black,etc. which could be ordered according to cunstomers' requirements.
| Material |
Mesh per inch |
Wire Dia (mm) |
Wire Dia (inch) |
Open Area |
| AISI 316 or 304 |
10 x 10 |
0.9mm |
0.035" |
41.7 |
| AISI 316 or 304 |
10 x 10 |
1.2mm |
0.028" |
27.8 |
| AISI 316 or 304 |
10 x 10 |
0.8mm |
0.032" |
46.9 |
| AISI 316 or 304 |
10 x 10 |
1.15mm |
0.045" |
29.9 |
| AISI 316 or 304 |
11 x 11 |
0.8mm |
0.032" |
42.5 |
| AISI 316 or 304 |
11 x 11 |
0.7mm |
0.027" |
48.3 |
| AISI 316 or 304 |
12 x 12 |
0.7mm |
0.027" |
44.8 |
| AISI 316 or 304 |
12 x 12 |
0.58mm |
0.023" |
52.8 |
| Special mesh can be made according to customers requirement |
• Durability: Resistant to wear, tear, and foot traffic, easy to clean. Lifespan: 10-15 years
• Corrosion resistance: 201 and 304 materials: Suitable for general indoor/outdoor environments; 316 material: Exceptional salt spray resistance, ideal for coastal humid areas and high-corrosion environments.
• Safety and Environmental Protection: Food-grade Stainless Steel Material
• Powerful insect and theft prevention
• High transparency and wear resistance: Excellent light transmittance and breathability, smooth surface, high hardness, and scratch resistance.
• Fireproof and flame-retardant: does not burn upon exposure to open flame and does not produce toxic smoke.
Application:
· Civil buildings such as residences, hotels, and office buildings.
· Livestock farms, food processing plants, warehouses, and other high-protection requirement facilities.
· Agricultural and horticultural facilities such as greenhouses, tunnels, and nurseries.
· Commercial premises like restaurant terraces, bar patios, and mall ventilation openings.
· Industrial environments with cleanliness requirements, such as laboratories, clean rooms, and electronic workshops.
· Locations with dual high demands for ventilation and safety, including hospital wards, school classrooms, and nursing homes.
· Special environments prone to corrosion or high humidity, such as chemical plants, coastal buildings, and swimming pool areas.
SUS 304 Stainless Steel Insect Screen-S0001
SUS 304 Stainless Steel Insect Screen-S0002
Application:
- Stainless steel security screen can resist the thieves and intruders, so it is used in the residences, hotels and other place for security.
- Due to the anti-mosquitoes and flies feature, it can be used in the windows, doors, porches and patios to prevent the harmful insects.
- Stainless steel security screen can resist the corrosion, rust and fire, it can be used in the harsh environments where is corrosive, dusty. It can also be used in the fire fighting accesses.
- Another importance feature of the stainless steel security screen is bullet-proof, so it can be used in industry base, and other safety places.
SUS 304 Stainless Steel Insect Screen - S0003
SUS 304 Stainless Steel Insect Screen - S0004
