316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net

316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net

Grote Afbeelding :  316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net

Productdetails:
Plaats van herkomst: Hebei, China
Merknaam: QIJIE
Certificering: CE,SGS,ISO
Modelnummer: SW-004
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 10 vierkante meter
Verpakking Details: houten kist
Levertijd: 10-15 werkdagen
Betalingscondities: 30% TT vooraf, saldo vóór laden
Levering vermogen: 3000 m2/maand
Gedetailleerde productomschrijving
Materiaal: roestvrij staaldraad Type: Kabelnetwerk, Metalen kaptype of Geknoopt Type
Sollicitatie: Mesh beschermen Weefstijl: Gewoon weefsel
Techniek: Geweven Modelnummer: Staalkabelnetwerk
Verwerkingsdienst: Weven grondstof: Roestvrij staal 304 316, Gegalvaniseerde Draad
Accessoires: Allen zouden kunnen worden verstrekt E-mail: devin@industrialmetalmesh.com
WhatsApp: +8615369013183
Markeren:

316 marine grade safety netting

,

stainless steel wire rope fence

,

architectural stainless steel mesh net

316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net



Stainless Steel Wire Rope Mesh Netting, Cable Mesh Net

Stainless steel cable mesh is made from stainless steel wire rope in various material type like AISI 304 , AISI 316 , AISI 316L etc.


The selected wire rope has two main strand structures:7*7 and 7*19. Generally, when the diameter of the steel wire rope is less than 2.5mm, the strand structure is 7*7, and when it is longer than 2.5mm, the strand structure is 7*19.

The ferrule material is usually stainless steel, sometimes aluminum, copper, and other materials are used. In addition, we can also oxidize or spray the surface of the stainless steel cable mesh according to customer needs.



Stainless Steel Wire Rope Mesh Netting, Cable Mesh Net

Also called SS cable mesh) made of high quality stainless steel wire twisted together, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility.
Item No.s
Cable Diameter
Mesh Opening Size(W×H)

inch
mm
inch
mm
BZ-32120F
1/8
3.2
4.75 x 8.23
120 x 207.8
BZ-32102F
1/8
3.2
4 x 6.9
102 x 176.7
BZ-3290F
1/8
3.2
3.55 x 6.15
90 x 156
BZ-3276F
1/8
3.2
3 x5.2
76 x 131.6
BZ-3251F
1/8
3.2
2 x3.46
51 x88.3
BZ-24102F
3/32
2.4
4x6.9
102x176.7
BZ-2490F
3/32
2.4
3.55x6.15
90x 156
BZ-2476F
3/32
2.4
3 x 5.2
76x 131.6
BZ-2460F
3/32
2.4
2.4x 4.16
60x 104
BZ-2451F
3/32
2.4
2x3.46
51 x 88.3
BZ-2076F
5/64
2.0
3 x 5.2
76 x 131.6
BZ-2060F
5/64
2.0
2.4x 4.16
60 x 104
BZ-2051F
5/64
2.0
2 x 3.46
51 x 88.3
BZ-2038F
5/64
2.0
1-1/2 x 2.6
38 x 65.8
BZ-1676F
1/16
1.6
1.2 x2.08
76 x 131.6
BZ-1651F
1/16
1.6
2x 3.46
51 x 88.3
BZ-1638F
1/16
1.6
1-1/2 x 2.6
38 x 65.8
BZ-1630F
1/16
1.6
1.2x2.08
30 x 52
BZ-1625F
1/16
1.6
1 x 1.73
25.4 x 44
BZ-1238F
3/64
1.2
1-1/2x2.6
38 x 65.8
BZ-1230F
3/64
1.2
1.2 x 2.08
30 x 52
BZ-1225F
3/64
1.2
1 x 1.73
25.4 x 44
BZ-1220F
3/64
1.2
4/5 x 1.39
20 x 34.6

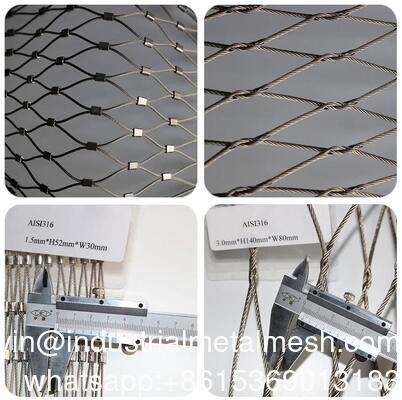

316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net 0

Applications:
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants





Advantages

High-Strength Construction: Durable 304/316 Stainless Steel ensures longevity and reliability.
Exceptional Stability: Multiple junction points and high-strength closed ferrules provide robust support.
Superior Corrosion Resistance: Perfect for heavy-duty plant support in various environments.
Professional Factory: Over 16 years of experience guarantees high-quality and efficient production.
Customizable Packaging: Special packages can be tailored to meet specific customer needs.

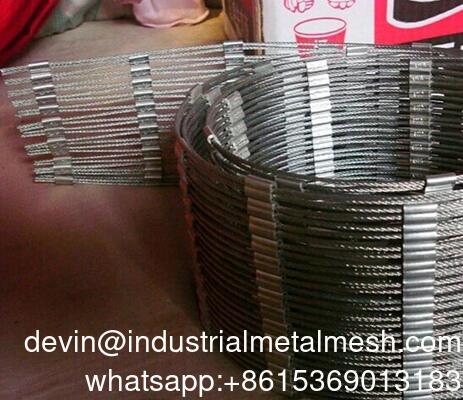

316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net 1



316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net 2
