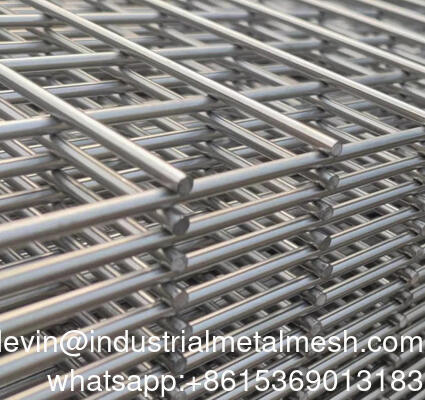

2*2 Galvanized Welded Wire Mesh Panel Construction Steel Wire Mesh Panel Fence Panel

2*2 Galvanized Welded Wire Mesh Panel Construction Steel Wire Mesh Panel Fence Panel
2*2 Galvanized Welded Wire Mesh Panel Construction Steel Wire Mesh Panel Fence Panel 2*2 Galvanized Welded Wire Mesh Panel Construction Steel Wire Mesh Panel Fence Panel

Grote Afbeelding :  2*2 Galvanized Welded Wire Mesh Panel Construction Steel Wire Mesh Panel Fence Panel

Productdetails:
Plaats van herkomst: China
Merknaam: QiJie
Certificering: ISO9001:2008, SGS, CE
Modelnummer: 01WWM
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 50 rollen
Prijs: USD9.90-USD45.90
Verpakking Details: Plastic folie of waterdicht papier
Levertijd: 10-25 dagen
Betalingscondities: TT,LC,
Levering vermogen: 1000 rollen/per dag
Gedetailleerde productomschrijving
Materiaal: Koolstofstaaldraad Mesh-opening: 12 × 12, 20 × 20, 25 × 25, 12 × 25 mm
Draaddiameter: 0,4 mm - 1,5 mm Rolbreedte: 0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m
Rollengte: 15M, 30M, 50M enz Oppervlaktebehandeling: Thermisch verzinkt of elektrisch verzinkt
Modelnummer: xx-01001 Sollicitatie:: Hek gaas
E-mail: devin@industrialmetalmesh.com WhatsApp: +8615369013183
Markeren:

galvanized welded wire mesh panel

,

steel wire mesh fence panel

,

construction welded wire mesh

2*2 Galvanized Welded Wire Mesh Panel Construction Steel Wire Mesh Panel Fence Panel​


Welded wire mesh panel, or welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control. The product results in considerable savings in time, labour and money.

Use: The welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.

Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.

Wire Diameter(mm) Aperture (mm) Width(m) Length
Inch MM
2.0mm-3.2mm 1" 25.4 0.914m-1.83m The length does not limit
2.0mm-4.5mm 2" 50.8 0.914m-2.75m
2.0mm-6.0mm 3" 70.2 0.914m-2.75m
2.0mm-6.0mm 4" 101.6 0.914m-2.75m
2.0mm-6.0mm 5" 127 0.914m-2.75m
2.0mm-6.0mm 6" 152.4 0.914m-2.75m
2.0mm-6.0mm 7" 177.8 0.914m-2.75m
2.0mm-6.0mm 8" 203.2 0.914m-2.75m


Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have a low resistance to wind loads
Easily cut to fit


Applications of Welded Wire Mesh
Welded wire mesh's combination of low cost, ease of use, and versatility make it a popular choice for many different applications.
1. Fences and gates: You'll find welded wire mesh fences and gates installed at residences and all types of commercial and industrial
properties.

2. Architectural uses such as building facades: Although welded wire fabric is known for its strength and durability, architects and designers
often use it to enhance aesthetic appeal.

3. Architectural Wire Mesh for Green Building Design: Using welded wire mesh can help achieve LEED(Leadership in Energy and Environmental
Design) credits and certification.

4. Infill panels for railings and divider walls: Woven wire infill panels are used often as partitions or divider walls due to its clean and
sometimes modern look.

5. Animal control: Farmers, ranchers, and animal control professionals use fencing made from welded wire mesh to contain livestock and
stray animals.

6. Screens for doors and windows: Welded wire mesh screens provide a sturdy material and effective insect control when installed in windows.
7. Machine guards: Use welded wire cloth guards for industrial machinery.
8. Shelving and partitions: Welded wire mesh's strength and stability enable it to serve as shelving for storing heavy products and as partitions
that promote visibility.

9. Behind-the-scenes use in plumbing, walls, and ceilings: Wire mesh provides support for pipes installed in the walls and ceilings of a structure.
10. Gardens to keep bugs away from their plants and vegetables: Mesh with a low open area percentage serves as a screen that prevents
insects from destroying plants.

11. Agriculture: To serve as barrier fencing, corn cribs, livestock shade panels, and temporary holding pens.



2*2 Galvanized Welded Wire Mesh Panel Construction Steel Wire Mesh Panel Fence Panel 0

2*2 Galvanized Welded Wire Mesh Panel Construction Steel Wire Mesh Panel Fence Panel 1
