Galvanized/PVC Coated 1"-4" Diamond Wire Mesh 5FT Chain Link Fence Cyclone Wire
Product descriptions
The chain link fence is made of high-quality metal wire crocheted, with uniform mesh, flat surface, strong and durable, beautiful and easy to install.
The chain link fence has various colors, which can be harmoniously matched with the surrounding environment and has a good decorative effect.
Inner Wire Material
1. Black wire: just black wire, without any surface finish.
2. Electro galvanzied, hot-dipped galvanzied
Two standard zinc coating for hot-dipped galvanzied:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Tips: Hot-dipped galvanized has better corrosion resistance than electro galvanized, because the thickness of zinc coating is thicker.
drawing of chain link fence
|
Chain Link Fence Specifications
|
|
Wire Dia.
|
Material
|
Hole size
|
Roll Height
|
Roll Length
|
Edge woven
|
|
2.5mm
3mm
3.5mm
4mm
4.5mm
|
Electric galvanized wire
Hot-dipped galvanized wire
Galfan wire
PE/PVC coated wire
|
40x40mm
50x50mm
60x60mm
75x75mm
100x100mm
|
1.2m
1.5m
1.8m
2.0m
2.4m
2.8m
3.0m
|
9m
10m
15m
18m
20m
25m
30m
|
Ordinary type
Wring type
Selvage knuckled
|
|
Galvanized Chain Link Fence Post specifications
|
|
Post view
|
Post size
|
Rails
|
Thickness
|
Mesh Height
|
Post length
|
|
Round post
|
Φ40
Φ48
Φ60
Φ75
|
Φ32
Φ40
Φ48
|
1.5mm
1.8mm
2.0mm
2.5mm
|
1.2m
1.5m
1.8m
2.0m
2.4m
2.8m
3.0m
|
1.6m
2.0m
2.3m
2.5m
3.0m
3.5m
3.7m
|
|
Angle iron
|
40x40mm
50x50mm
60x60mm
70x70mm
|
40x40mm 50x50mm
|
4mm
5mm
6mm
|
|
Surace treatment
|
1.Pre-galvanized tube
2.Galvanized tube powder coated
3.Hot-dipped galvanized
|
1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;
2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm);

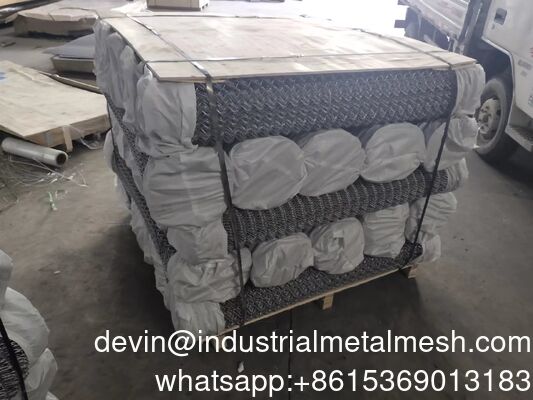

Loading of PVC coated Chain Link Fence
install of chain link fence
4' High x 250' Galvanized Chain Link Fence Packages Include:
- 250' - 4' High Galvanized Chain Link Fence Fabric
- 12 - 1-3/8" x 21' Galvanized Top Rails
- 20 - 1-5/8" x 6' Galvanized Line Posts
- 10 - 2-1/2" x 6'6" Galvanized Terminal Posts
- 20 - 1-5/8" x 1-3/8" Chain Link Loop Caps
- 10 - 2-1/2" Chain Link Post Caps
- 14 - 48" Galvanized Chain Link Tension Bars
- 42 - 2-1/2" Galvanized Tension Bands
- 14 - 2-1/2" Galvanized Brace Bands
- 14 - 1-3/8" Rail End Cups
- 56 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
- 1 - 4' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
- 1 - 4' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
- 2 - 1-5/8" Aluminum Pig Tail Tie Wire - Bag of 100
pvc coated chain link fence-001
galvanized chain link fence-001
galvanized chain link fence-002
galvanized chain link fence-003
galvanized chain link fence-004
galvanized chain link fence-005
