Heavy Duty Stainless Steel Grating for Sturdy Inspection Stairs

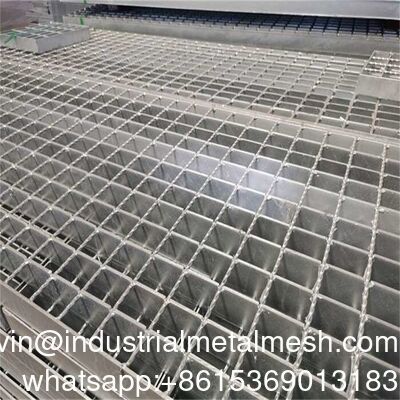

Grote Afbeelding : Heavy Duty Stainless Steel Grating for Sturdy Inspection Stairs

Productdetails:

Plaats van herkomst:	China
Merknaam:	Dimpled Hole Metal Sheets
Modelnummer:	Metalen platen met gaten

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	10 stuks
Verpakking Details:	Pallets
Levertijd:	15-18 dagen
Betalingscondities:	30% TT vooraf, saldo vóór laden
Levering vermogen:	1000 stuks

Contact

Gedetailleerde productomschrijving

Chemische samenstelling:	Fe, C, Si, Mn, S, P	Legering of niet:	Niet-gelegeerd
Mogelijkheid tot projectoplossing:	grafisch ontwerp, 3D-modelontwerp, totaaloplossing voor projecten	Sollicitatie:	Villa
Oppervlaktebehandeling:	Het Hot-DIP Galvaniseren, Schilderend of Onbehandeld	Roosterlengte:	1000 mm
Roosterbreedte:	800 mm	Dragende barbreedte x dikte:	25x3mm
Dragende barvorm:	Duidelijk, Getand versper ik het Staalgrating van de typestijl	Dwarsbarvorm:	verdraaide ronde, barvorm
Maaswijdte:	30x100mm	E-mail:	devin@industrialmetalmesh.com
WhatsAPP:	+8615369013183
Markeren:	heavy duty stainless steel grating , sturdy inspection stairs grating , galvanized steel grating with warranty

Heavy Duty Stainless Steel Grating for Sturdy Inspection Stairs

Galvanized Steel Grating

Galvanized Steel Grating, is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Our galvanized coating process provides for years of corrosion resistance in acidic and high moisture environments.

Steel grating is available in varied form suitable for different application and overall load conditions. Hot dip galvanizing or painting can make them in excellent appearance, durability and enhanced economy. Galvanized steel grating is widely used in Power Station, Chemical Industry, Oil & Gas Industry, Boiler Plant, Mining and Refinery, etc.

Introducing our groundbreaking Premium Steel Grating-a marvel of engineering precision. With its robust serrated bearing bar, this product is designed to excel in both performance and aesthetics. The intelligent structural design makes it the perfect choice where high load-bearing capability and visual appeal are paramount. Crafted meticulously from a specified size of serrated steel, it undergoes a series of precise processes involving slotting, inserting, welding, and finishing. The result is an outstanding product that effortlessly manages substantial loads, making it a reliable solution for heavy-duty industrial platforms with enhanced safety. Our surface treatments are versatile to suit your needs, offering galvanizing, painting, or dipping.

Specification

Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
		20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
		32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Materials	Q195, Q235 ,Q235B / 304 316 Stainless Steel
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar	US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Bearing Bar Pitch	US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch	38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
Steel Grade	ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Grating Standard	China: YB/T 4001.1-2007
	USA: ANSI/NAAMM(MBG531-88)
	UK: BS4592-1987
	Australia: AS1657-1985
	Japan: JJS

Advantages:
high strength, anti-slip, ventilation and light transmission properties.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

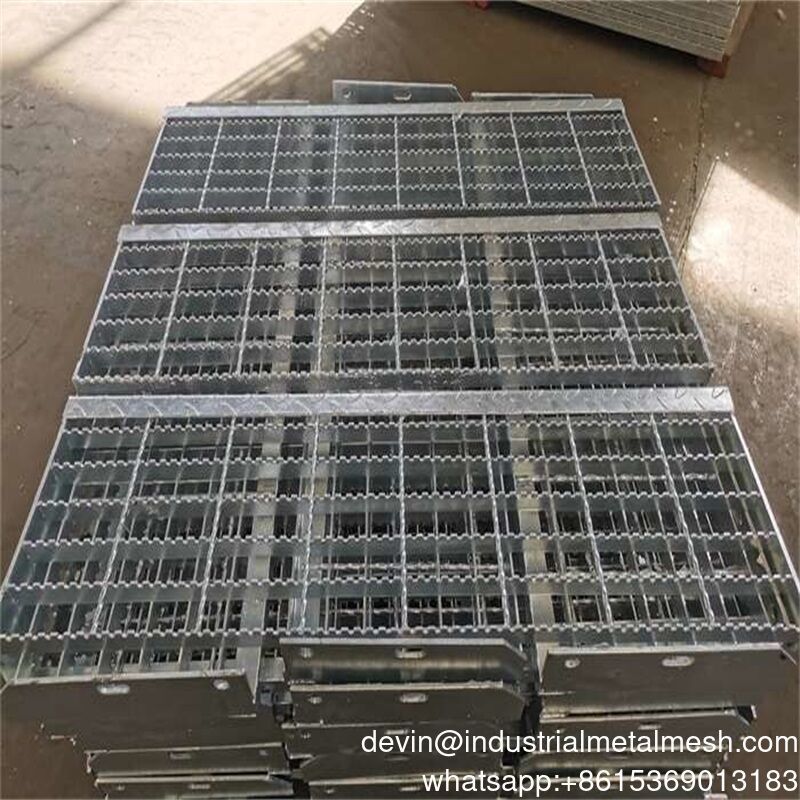

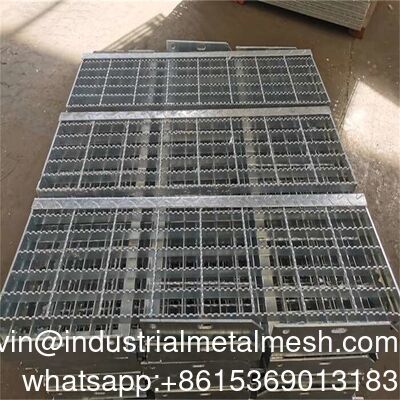

steel grating Heavy Duty Stainless Steel Grating for Sturdy Inspection Stairs 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
