Wholesale High Security Galvanized Chain Link Fence Cost with Barbed Wire on Top.

Product descriptions

Chain Link Fence also called Cyclone Fence or Diamond Mesh Fence. As a versatile Fence, Chain link Fences are the fastest and most cost effective fence products on the market today. using the woven steel wire to make the panel, it is widely used in everywhere. Due to the different applications, it is available in various wire gauges and mesh sizes. All Linkland Chain Link Fence rolls are completed with line wires and knuckled edges. What's more, the Chain Link Fence with barbed edges is more popular and has higher security.

Inner Wire Material
1. Black wire: just black wire, without any surface finish.
2. Electro galvanzied, hot-dipped galvanzied
Two standard zinc coating for hot-dipped galvanzied:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Tips: Hot-dipped galvanized has better corrosion resistance than electro galvanized, because the thickness of zinc coating is thicker.

drawing of chain link fence

1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;

2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm);

Loading of PVC coated Chain Link Fence

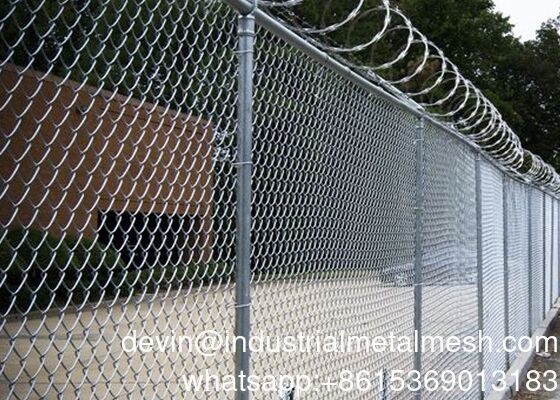

install of chain link fence

4' High x 250' Galvanized Chain Link Fence Packages Include:

• 250' - 4' High Galvanized Chain Link Fence Fabric
• 12 - 1-3/8" x 21' Galvanized Top Rails
• 20 - 1-5/8" x 6' Galvanized Line Posts
• 10 - 2-1/2" x 6'6" Galvanized Terminal Posts
• 20 - 1-5/8" x 1-3/8" Chain Link Loop Caps
• 10 - 2-1/2" Chain Link Post Caps
• 14 - 48" Galvanized Chain Link Tension Bars
• 42 - 2-1/2" Galvanized Tension Bands
• 14 - 2-1/2" Galvanized Brace Bands
• 14 - 1-3/8" Rail End Cups
• 56 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
• 1 - 4' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
• 1 - 4' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
• 2 - 1-5/8" Aluminum Pig Tail Tie Wire - Bag of 100
