Uniform Hole and Flat Surface Stainless Steel Welded Wire Mesh 1/4" to 3"

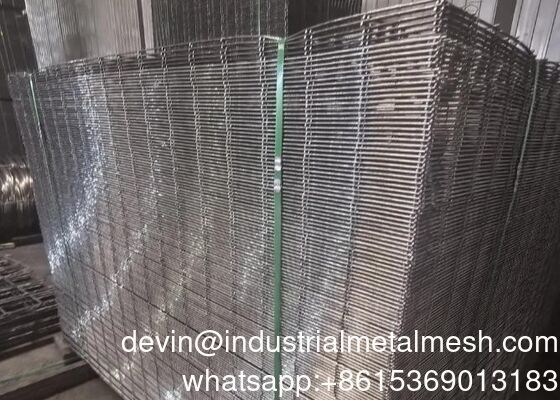

Grote Afbeelding : Uniform Hole and Flat Surface Stainless Steel Welded Wire Mesh 1/4" to 3"

Productdetails:

Plaats van herkomst:	China
Merknaam:	QiJie
Certificering:	ISO9001:2008, SGS, CE
Modelnummer:	01WWM

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	50 rollen
Prijs:	USD9.90-USD45.90
Verpakking Details:	Plastic folie of waterdicht papier
Levertijd:	10-25 dagen
Betalingscondities:	TT,LC,
Levering vermogen:	1000 rollen/per dag

Contact

Gedetailleerde productomschrijving

Materiaal:	Koolstofstaaldraad	Mesh-opening:	12 × 12, 20 × 20, 25 × 25, 12 × 25 mm
Draaddiameter:	0,4 mm - 1,5 mm	Rolbreedte:	0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m
Rollengte:	15M, 30M, 50M enz	Oppervlaktebehandeling:	Thermisch verzinkt of elektrisch verzinkt
Modelnummer:	xx-01001	Sollicitatie::	Hek gaas
E-mail:	devin@industrialmetalmesh.com	WhatsAPP:	+8615369013183
Markeren:	stainless steel welded wire mesh , uniform hole welded wire mesh , flat surface welded wire mesh

Uniform Hole and Flat Surface Stainless Steel Welded Wire Mesh 1/4" to 3"

Product Description:

Stainless steel welded wire mesh is an extremely popular and versatile item that many different customers use for many different applications.

Aside from stainless steel's corrosion resistance and clean look, another benefit of selecting a stainless steel welded wire mesh is that because the wires are physically welded at each intersection, the mesh will remain intact and rigid. Strong and consistent welds make stainless steel welded wire mesh an ideal option for general industrial use because welded mesh can be cut down to smaller sizes, like rectangles, squares or discs, without fraying, which can occur when fabricating with a woven mesh.

Like virtually all wire mesh and wire cloth, stainless steel welded wire mesh lends itself for use in architectural, agricultural, commercial and industrial applications. Here are a handful of popular uses for T 304 SS and T 316 SS welded wire mesh:

Stainless steel special welded wire mesh in big wire diameter
Hole Size		Wire diameter	Wide	length
Inch	mm	Wire diameter	Wide	length
1/4"X1/4"	6.4mmX6.4mm	0.7mm	0.3-2.5m	10M -30M
1/4"X1/4"	6.4mmX6.4mm	1.2mm	0.3-2.5m	10M -30M
1/4"X1/2"	6.4mmX12.7mm	0.9mm	0.3-2.5m	10M -30M
1/4"X1"	6.4mmX25.4mm	1.2mm	0.3-2.5m	10M -30M
1/3"X1/3"	8.5mmX8.5mm	1.0mm	0.3-2.5m	10M -30M
1/3"X1/3"	8.5mmX8.5mm	1.2mm	0.3-2.5m	10M -30M
3/8"X3/8"	9.5mmX9.5mm	0.9mm	0.3-2.5m	10M -30M
3/8"X3/8"	9.5mmX9.5mm	1.0mm	0.3-2.5m	10M -30M
1/2"X1/2"	12.7mmx12.7mm	0.7mm	0.3-2.5m	10M -30M
1/2"X1/2"	12.7mmx12.7mm	2.0mm	0.3-2.5m	10M -30M
1/2"X1"	12.7mmX25.4mm	2.5mm	0.3-2.5m	10M -30M
3/4"X3/4"	19mmX19mm	1.0mm	0.3-2.5m	10M -30M
1"X1"	25.4mmX25.4mm	3.0mm	0.3-2.5m	10M -30M
2"X2"	50mmX50mm	3.0mm	0.3-2.5m	10M -30M

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Wire Plaster Wall Mesh

1,High Strength & Durability
Strong welded joints provide reliable reinforcement and extend the service life of concrete structures.
2,Improved Construction Efficiency
Prefabricated mesh panels reduce on-site labor, speed up installation, and ensure consistent quality.
3,Crack Resistance
Enhances tensile strength of concrete and effectively prevents cracking under load.
4,Cost-Effective
Minimizes material waste, lowers labor costs, and shortens project time.
5,Wide Applications
Suitable for residential, commercial, and infrastructure projects such as highways, bridges, tunnels, airports, and industrial buildings.
6,Customization Available
Mesh size, wire diameter, and panel dimensions can be tailored to meet specific project requirements.
7,Corrosion Resistance
Galvanized or coated options ensure long-term protection in harsh environments.

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
